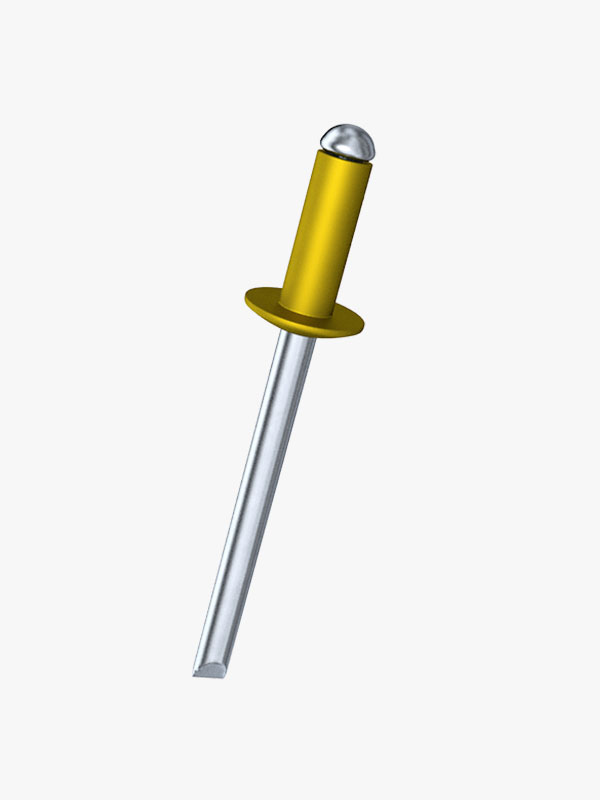

Painted Rivets
Commonly used instructions
| RAL 6020 | RAL 9010 | RAL 7035 | RAL 7000 | RAL 7015 |
| RAL 3003 | RAL 3009 | RAL 8014 | RAL 8004 | RAL 8022 |
| RAL 8012 | RAL 1004 | RAL 5002 | RAL 1034 |
| RAL 4007 | RAL 6021 | RAL 6002 | RAL 4008 |
Option available to color
aluminum and steel type rivets.
·Dome Head.
·Countersunk Head.
·Large Flange Head.
All kind of RAL color are available.
| Dia(d) | length(l) | Grip range | Φ | |
|---|---|---|---|---|
| 2.4 (3/32) 2.4 (3/32) 2.4 (3/32) 3.2 (1/8) 3.2 (1/8) 3.2 (1/8) 3.2 (1/8) 3.2 (1/8) 3.2 (1/8) 3.2 (1/8) 3.2 (1/8) 3.2 (1/8) 4.0 (5/32) 4.0 (5/32) 4.0 (5/32) 4.0 (5/32) 4.0 (5/32) 4.0 (5/32) 4.0 (5/32) | 6.4 (1/4) 8.0 (5/16) 10.0 (3/8) 6.4 (1/4) 8.0 (5/16) 10.0 (3/8) 11.4 (7/16) 12.7 (1/2) 14.5 (9/16) 16.0 (5/8) 19.0 (3/4) 22.0 (7/8) 6.4 (1/4) 8.0 (5/16) 10.0 (3/8) 11.4 (7/16) 12.7 (1/2) 14.5 (9/16) 16.0 (5/8) | 2.5-4.0 4.0-5.5 5.5-7.5 1.0-3.0 3.0-5.0 5.0-6.5 6.5-8.0 8.0-9.0 9.0-10.5 10.5-12.0 12.0-14.5 14.5-17.5 1.0-2.5 2.5-4.0 4.0-6.0 6.0-7.5 7.5-8.5 8.5-10.0 10.5-11.5 | 2.5-2.6 2.5-2.6 2.5-2.6 3.3-3.4 3.3-3.4 3.3-3.4 3.3-3.4 3.3-3.4 3.3-3.4 3.3-3.4 3.3-3.4 3.3-3.4 4.1-4.2 4.1-4.2 4.1-4.2 4.1-4.2 4.1-4.2 4.1-4.2 4.1-4.2 | |
| Dia(d) | length(l) | Grip range | Φ | |
|---|---|---|---|---|
| 4.0 (5/32) 4.0 (5/32) 4.8 (3/16) 4.8 (3/16) 4.8 (3/16) 4.8 (3/16) 4.8 (3/16) 4.8 (3/16) 4.8 (3/16) 4.8 (3/16) 4.8 (3/16) 6.4 (1/4) 6.4 (1/4) 6.4 (1/4) 6.4 (1/4) 6.4 (1/4) 6.4 (1/4) 6.4 (1/4) | 19.0 (3/4) 22.0 (7/8) 8.0 (5/16) 10.0 (3/8) 11.4 (7/16) 12.7 (1/2) 14.5 (9/16) 16.0 (5/8) 19.0 (3/4) 22.0 (7/8) 25.4 (1) 10.0 (3/8) 12.7 (1/2) 14.5 (9/16) 16.0 (5/8) 19.0 (3/4) 22.0 (7/8) 25.4 (1) | 11.5-14.0 14.0-17.0 1.5-3.5 3.5-5.5 5.5-7.0 7.0-8.0 8.0-9.5 9.5-11.0 11.0-14.0 14.0-17.0 17.0-20.0 2.5-4.5 6.0-7.0 7.0-8.5 9.0-10.5 10.5-13.5 13.5-16.5 16.5-20.0 | 4.1-4.2 4.1-4.2 4.9-5.0 4.9-5.0 4.9-5.0 4.9-5.0 4.9-5.0 4.9-5.0 4.9-5.0 4.9-5.0 4.9-5.0 6.5-6.6 6.5-6.6 6.5-6.6 6.5-6.6 6.5-6.6 6.5-6.6 6.5-6.6 | |
Color box
White box
Brown boxAbout delivery
For Painted Rivets orders with a total order of less than 1000000pcs, if there are no special circumstances, we will ship within 20 days after ordering
Packaging details
1. We have several sizes of packing dimensions, can be 20kg or 25kg per carton.
2. For large orders, we can design specific sizes of boxes and cartons.
3. Normal Packing: 1000pcs/500pcs/250pcs per small box. then small boxes into cartons.
4. Can provide special packings as middle east clients requests.
Q: What is the MOQ for Painted Rivetss ?
A: Our Painted Rivets MOQ is usually 1,000,000pcs per size.
Q: Can we print our own logo on packaging or Painted Rivetss?
A: Yes, packing and Painted Rivetss we can make according to your requirements.
Q: How long is the delivery time for Painted Rivets?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to quantity.
Q: What is your payment term?
A: Generally, 30% T/T in advance ,balance before shippment or against B/L copy.
Q: Are you trading company or Painted Rivets manufacturer?
A: We are direct Painted Rivets manufacturer, who owns production lines and workers. No need to worry about extra charges by the middle man or trader.
